Electric Wire Saw

By Kakun Hakken Japan

DSX-10
Model		DSX-10
Power supply		230V 50/60Hz
Rated Output		2.400W
Max. Output		6,400W
No-Load Speed	HI	1000 RPM
	LOW	420 RPM
Cutting Area Rectangle		0.62m2
Cutting Area Column		0.65m2(0910})
Size W x L x H		919 x 532 x 1,486mm
Weight		79.2 Kg

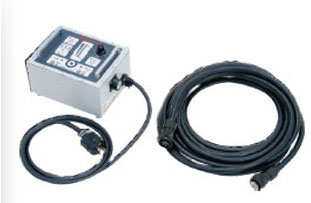

Control Box
Model BE-31 Power In Use 230V 50/60Hz Max. Power Consumption 150W Rated Current Control Range 30A Size W x L x H 265 x 200 x 179mm Weight 5.0 Kg   >> Auto-Stop function can be used >> Soft starting circuit is included >> Manual control is also possible >> Cutting load current is shown by bar chart Meter There is not trouble an oil pressure unit and is most suitable wire saw for a small section around 0.6m2 at a sharp turn.
