Plunge Cut

By Kakun Hakken Japan

• Unlike wall cutting which does not allow cutting deeper than the radius of diamond blade, plunge cutting enables cutting of thick reinforced concrete deeper than the diameter of blade for use by plunging its rotation axis into pilot hole, offering low noise, vibration free operation, PAT.
• The use combining with wall cutter enables to cut an opening section without overcutting.
• Can be open 350~450 quadrilateral hold only one anchor bolt works.
• The Plunge Cut Attachment is made up of three units, Main Body, Cover and Pole Base.
• Diamond Blade, Drill head and 4”BTC are required for execution.

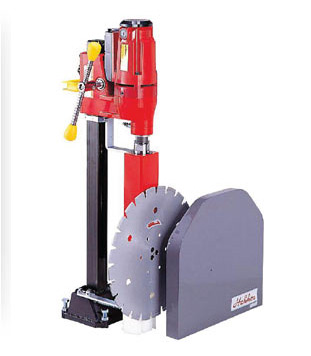

PC-16
Drill Head to be used	SPN-201
Max. Thickness of Cut	282mm
Max. Blade Dia	16"
Blade Sizes
8" 218mm 10" 269mm 12" 318mm 14" 368mm 16" 418mm
