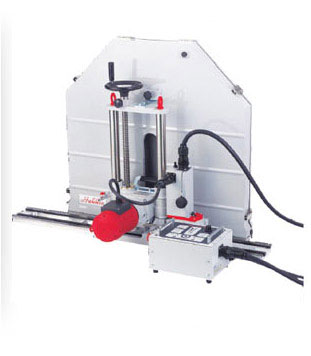

Electric Wall Cutter

By Kakun Hakken Japan

CDW-40
Model		CDW-40
Power supply		230V 50/60Hz
Rated Output		2.400W
Max. Output		6,400W
No-Load Speed	HI	840 RPM
	LOW	340 RPM
Standard Blade Dia.		30" ( 762mm)
Max. Blade Dia.		40" ( 1,016mm)
Blade Hole Dia.		35mm
Max. Depth of Cut-	30"(762mm)	301mm
	40"(1016mm)	428mm
Size W x L x H		484 x 460 x 753mm
Weight		36.5 Kg
BLADE COVER
Model 30A 40A 48A Blade Dia 30" 40" 48" Weight 9.7 Kg 13.5 Kg 18.0 Kg.
TRACK RAIL
Model 600L 1200L 1800L Length 600mm 1200mm 1800mm Weight 6.3 Kg 12.5 Kg 18.8 Kg.
DIAMOND BLADE

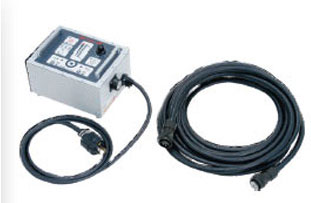

Model Hole Dia.   CDW-40 35 CDW-30 35 >> Soft starting circuit is included >> Manual control is also possible >>Cutting load current is shown by bar chart Meter
